AIR Currents

Feb 21, 2014

Editor's Note: Last year was an extraordinary one for the German insurance industry. Beleaguered by flooding, hailstorms, and extratropical cyclones, Germany experienced the gamut of natural catastrophes. This article explains the value of taking a holistic view of risk and what role catastrophe models play in helping companies understand their aggregate loss potential.

In 2013, Germany was beset by historic flooding in June, hailstorms in July, and extratropical cyclones in October and December. The combined insured losses serve as a reminder that accounting for both occurrence and aggregate losses is critical to understanding and managing risk.

Largest Insured Loss Event

Last year, the catastrophe that topped the list of insured losses for a single country was an outbreak of severe hailstorms spawned by a low pressure system dubbed Andreas, according to Munich Re.1 Large and damaging hail battered northern and southwestern Germany on two consecutive days. Based on the standard hours clause, the outbreak was treated as a single event.

The first hailstorm hit the northern industrialized area around Hannover on July 27, followed the next day by the southwestern event that affected the densely populated and industrialized region near Stuttgart. The insured losses resulting from these hailstorms totaled EUR 2.74 billion (USD 3.7 billion, Munich Re), making it the largest loss hail event in Germany since the 1984 Munich hailstorm.

As these hailstorms only skirted the cities of Hannover and Stuttgart, the large loss that resulted highlights the significant loss potential of hail in Central Europe. A more direct hit on the city centers would have resulted in far greater losses.

Furthermore, this loss represented less than half of Germany's total insured losses in 2013, which underscores the importance of accounting for potential aggregate losses as well as occurrence losses when managing risk. In 2013, the combined insured losses from severe flooding, several hailstorms, and two winter storms amounted to a staggering EUR 7 billion (German Insurance Association [GDV]) across property and automobile lines of business.

Figure 1
Figure 1. Major loss-causing events in 2013: Winter Storm Christian loss cost (top shaded portion), flood inundation planes (along rivers in blue), detailed flood loss cost map for Bavaria (inset at bottom right), and reported hail events (orange circles)

In the German reinsurance landscape, stop-loss and quota share treaties are commonly written to protect from an excessive aggregation of losses. Germany is exposed to a wide range of natural catastrophes, including extratropical cyclones, coastal and inland floods, hailstorms, and—to a lesser extent—earthquakes. While the largest potential loss is associated with winter storms because they can affect large portions of Germany, it is imperative to also consider the potential losses of additional multiple smaller events across multiple perils. Reinsurance protection should take into account both perspectives—the risk from large events and the aggregation of smaller events.

Nicolai ThumBy: Dr. Nicolai Thum
Senior Research Associate

Sebastian DiebelBy: Sebastian Diebel
Client Services Associate

Marius HenseliBy: Marius Henseli
Client Services Associate

Edited by Sara Gambrill


Snapshot of Catastrophes Impacting Germany in 2013

June Flooding

The flooding in Central Europe at the beginning of June hit Germany hardest, particularly the southern and eastern German states of Thuringia, Saxony, Saxony-Anhalt, Lower-Saxony, and Bavaria. Several levees along the Elbe and Danube rivers were breached, allowing floodwaters to spread for many kilometers across low-lying areas. Exceptionally high expenditures per claim resulted. Insured losses came to EUR 1.8 billion (USD 2.43 billion)* in Germany. Overall losses totaled EUR 11.7 billion (USD 15.2 billion)**, making it the costliest natural catastrophe of the year in terms of economic damage.

July and August Hailstorms

According to Munich Re, the largest insured loss from a natural catastrophe for a single country was a squall line accompanied by severe hailstorms that hit northern and southwestern Germany on July 27 and 28. During the night of July 26 ahead of the low pressure system Andreas, a large mesoscale convective system (hundreds of kilometers in area) developed over the Bay of Biscay and moved over France and Benelux toward Germany. The following afternoon, the convective system approached Germany, and the coincidence of the mesoscale convective system with the prevailing warm air masses initiated the development of a long-lived supercell. The hailstones damaged building façades, roofs, solar installations, as well as numerous cars. For some companies, this event surpassed the losses from Winter Storm Kyrill in 2007. In addition to the events in late July, hail events in August contributed to total insured hail losses of EUR 3.9 billion (USD 5.2 billion)** in Germany in 2013.

October and December Winter Storms

Winter Storm Christian in late October and Winter Storm Xaver in early December both swept over the UK, the Benelux countries, northern Germany, and Denmark with wind gusts exceeding 150 km/h (93 mph). Both events triggered a widespread downing of trees, which caused severe damage to some homes and vehicles. In addition, Winter Storm Xaver triggered a storm surge that elevated the water level of the Elbe to over 6.09 meters (20 feet) above normal in Hamburg. The levees and other protection measurements held back the waters, however, and storm surge losses were limited. While the size of individual claims for these two storms was relatively low, the overall volume of claims was significant due to the extent of the affected area. The insured losses for Germany from these two winter storms were several hundred million euros.

**Munich Re

The Importance of Accounting for Aggregate Losses

Natural catastrophe models can provide the tools to quantify the likelihood of different levels of losses, which helps companies structure appropriate reinsurance programs. The current suite of AIR models for Germany covers extratropical cyclone, flood, and earthquake.

Potential losses can be examined for each peril individually or, because of AIR's unique year-based catalog architecture, for all three perils combined. Figure 2 shows the occurrence and aggregate exceedance probability curves for the three modeled perils in Germany. The occurrence loss represents the single largest loss event for each modeled year, while the aggregate loss represents the cumulative loss across all events and all perils for each modeled year.

Important insights can be derived from looking at both loss perspectives. For example, the 10-year return period aggregate loss in Figure 2 is comparable to the 25-year return period occurrence loss. In other words, this loss level in a given year is more than twice as likely to result from aggregate losses than it is from a single event.

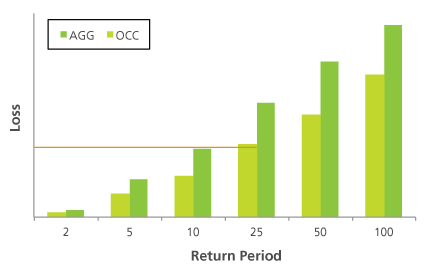

Figure 2
Figure 2. Occurrence and aggregate exceedance probability for Germany from extratropical cyclone, earthquake, and flood

While AIR does not currently offer a hail model for Germany, a severe thunderstorm model for Europe (that will explicitly capture hailstorms in Germany) is currently under development. Accounting for this peril in Figure 2 would further increase the spread between the occurrence and aggregate perspectives because hail is usually characterized by high frequency but moderate losses.

A look at Germany's recent insured loss history further confirms the importance of taking a holistic view. As seen in Figure 3, in most years the losses derive from several events. Only in 2007 are the aggregate losses predominantly from a single event, Winter Storm Kyrill.

Figure 3
Figure 3. Insured property and auto losses from severe natural catastrophes in Germany (Source: GDV)

Lessons Learned

While a single large event might be easily absorbed by a reinsurance program, 2013 clearly demonstrates that the accumulation of losses across multiple perils can pose a serious challenge if the aggregate perspective is not also considered. Catastrophe models provide scientifically sound loss simulation so companies can understand and quantify their risk to prepare for the full range of loss outcomes, including years like 2013.

ETC Clustering Contributes to Aggregate Losses

European extratropical cyclones are known to cluster both temporally and spatially, arriving in quick succession and often impacting the same region. Clustering is associated with all sizes of low pressure systems and can contribute significantly to aggregate losses. The loss-causing events Christian and Xaver were both accompanied by other, smaller systems. The AIR Extratropical Cyclone Model for Europe explicitly accounts for the clustering of winter storms.

1 On a per event basis, according to Swiss Re, the hailstorms were the second highest source of insured loss after the June 2013 Central European floods (estimated at USD 4 billion).
